Split Combined Variant Columns into Shopify Options

Supplier files often cram variants into one column like "Red / Large". Here's how Portaim splits it into real Shopify Option1 / Option2 values automatically.

Free plan available · No credit card required · Shopify connection optional

The problem: one “Variant” column, not two

Supplier product files rarely arrive with a Shopify-shaped variant structure. A common pattern is a single column that packs two attributes together — a value like Red / Large or Blue-M in a “Variant”, “Attributes”, or “Option” column.

Shopify does not read that. Its product CSV expects up to three option axes as separate fields: Option1 Name / Option1 Value, Option2 Name / Option2 Value, and Option3 Name / Option3 Value. If you import a combined value as-is, Shopify treats the whole string as one option value — and you end up with one product carrying a single strange variant instead of the color-and-size grid you expected.

Conceptually, this is what has to happen for every row:

The manual version of this is repetitive spreadsheet work:

• add two new columns to the supplier file;
• write a formula to split each combined value on the correct separator;
• fill down for every product row;
• check that no row has three attributes when Shopify only sees two;
• repeat the entire routine next month when the supplier sends an update.

How Portaim helps

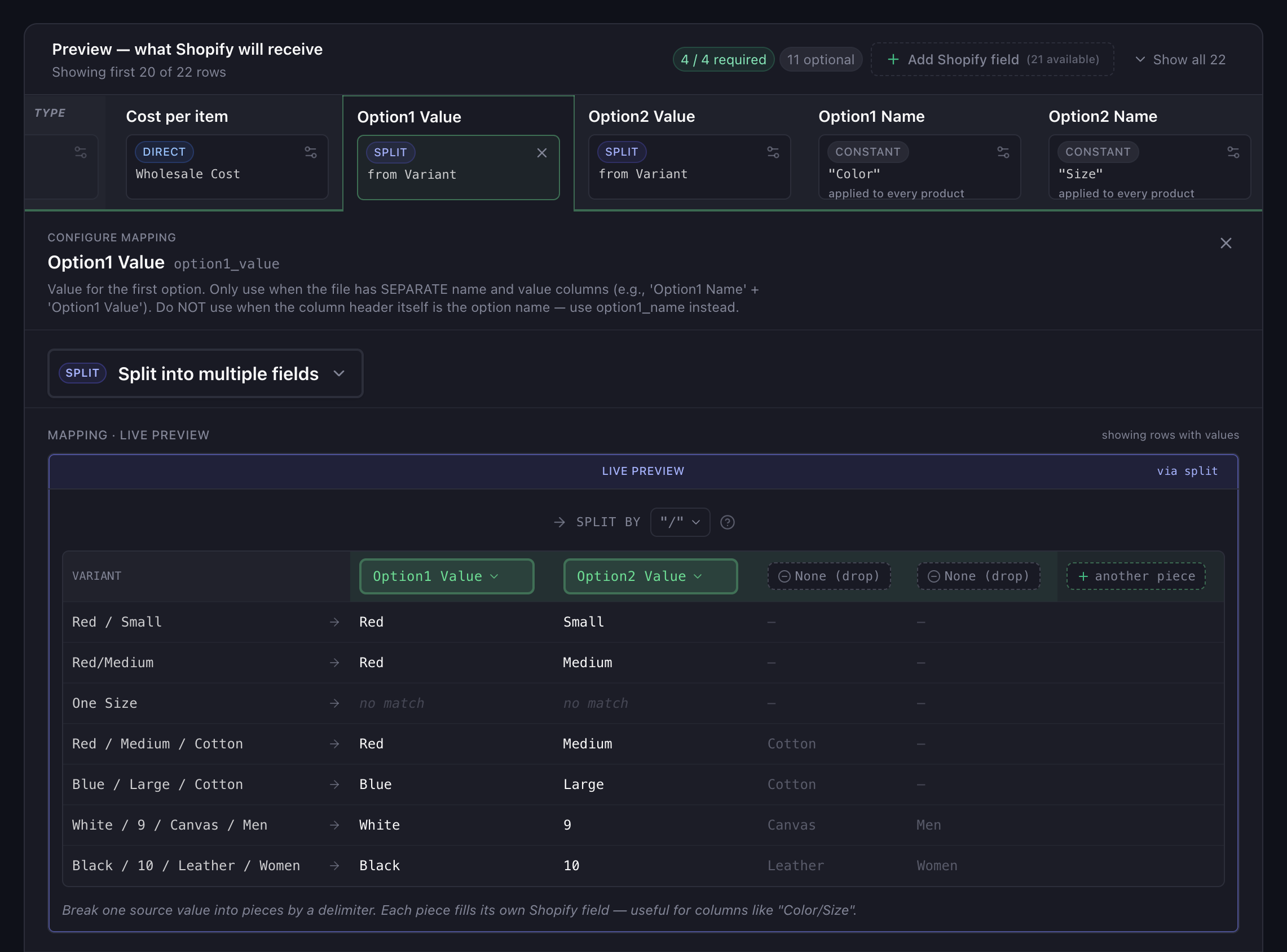

Portaim recognizes the shape of a combined column during mapping. Slash, pipe, and spaced-hyphen (" - ") separators are detected automatically and the mapper offers to split the column into two or three Shopify option fields, with a live preview of the values on your first rows. Any other separator — a comma, a bare hyphen, or a custom character — works too: switch the column to Split in the editor and pick the separator manually.

You keep control at every step:

• the separator the split uses — slash, pipe, spaced-hyphen, comma, or anything else you type in;
• the Shopify option axis each piece maps to (option1_value, option2_value, option3_value) — supplier columns usually do not carry that mapping context;
• which pieces you want to keep — if the column contains “Red / Large / Cotton” but you only want to model color and size, you can extract just the first two pieces and leave the third out;
• the preview updates as you change any of those, so you see exactly what will land in Shopify before export.

Edge cases the split has to get right

A naive “split on /” script breaks on real supplier data. Portaim’s split is a delimiter plus a per-piece Shopify-field assignment you can review, and the composition layer emits explicit warnings when a row doesn’t produce enough pieces to fill every assigned field rather than exporting missing option values:

The last row matters more than it looks. Shopify’s CSV import treats a row with the same handle but missing option values as an instruction to change the variant structure — which can remove existing variants from a live product. Flagging those rows before export is safer than letting them through.

Export — what the Shopify payload looks like

After the split is confirmed and validation passes, one supplier row with a combined variant column becomes one Shopify variant row with the option fields populated. A product with three variants shipped as three supplier rows — each row shares the product’s Handle, and each carries its own option values.

Direct Shopify export sends the same shape through the Admin API — the split happens once during mapping and both export paths receive the result.

Repeat imports from the same supplier

Most merchants do not import a supplier catalog once. The same file layout arrives next month with new products, and re-splitting a combined variant column by hand every time does not scale.

Portaim recognizes when a supplier file with the same column layout is re-uploaded and reapplies your previous mapping automatically — including the split rule, the detected separator, and your chosen option-axis names. New products flow through with variants intact; you review the fix step and export.

When this fits

Portaim’s split rule is a good fit if:

• your supplier sends a single “Variant”, “Attributes”, or “Option” column with combined values like Red / Large;
• the separator is consistent within the column, even if it’s not consistent across suppliers;
• your products have up to three option axes (Shopify’s ceiling);
• you want the same mapping to reapply on next month’s file without redoing the split by hand.

Portaim’s split rule is not the right tool if:

• your supplier already provides Option1 Name / Option1 Value as separate columns — those map directly with no split needed;
• your products have no variants at all (one row per product, no option columns);
• your variant attributes live in the row’s SKU code and would need to be parsed with a positional or structural rule rather than a simple separator — contact us at contact@portaim.com before uploading if that’s your case.

Manual CSV editing vs Portaim

The manual path works. It also does not scale. To split combined variant values by hand for a Shopify import you would:

• open the supplier file in Excel or Google Sheets;
• add two or three new columns for the split values;
• write a SPLIT() or text-to-columns transformation;
• manually enter Option1 Name and Option2 Name for every row;
• audit rows where the split fell over (extra attributes, single-value cells, weird whitespace);
• check the finished CSV against Shopify’s expected format before importing;
• redo all of it next month.

Portaim replaces that with a mapping step:

Supplier CSV/XLSX → Portaim mapping (detect + split + validate) → Shopify-ready export

The split rule is one setting on one field card. The mapping is remembered for the next upload. Rows that don’t produce enough pieces don’t disappear silently — they show up in the fix step where you can decide what to do with them.

For the full mapping-and-validation flow around this step, see the supplier CSV to Shopify use case or the Portaim docs.
